Package mosp :: Module core :: Class Simulation

Class Simulation

A MOSP Simulation.

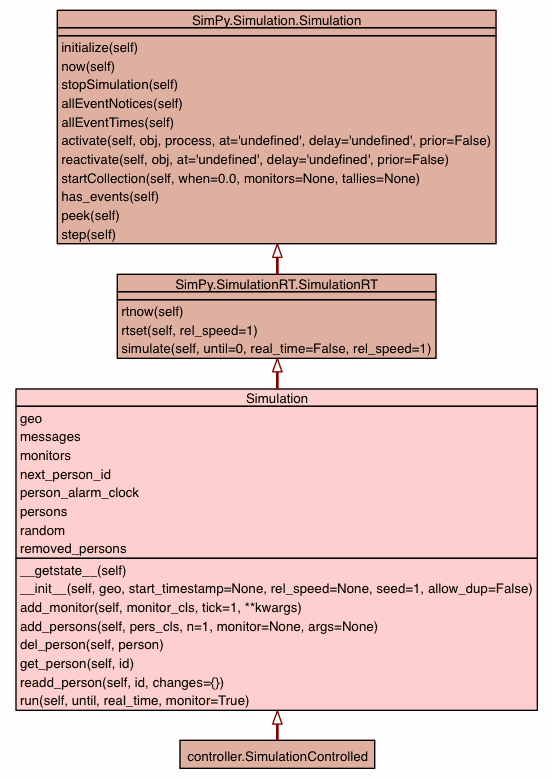

Extends SimPy's SimulationRT (Simulation with Real Time Synchronization) to store MOSP specific data and implement specific methods.

Authors:: F. Ludwig, P. Tute, B. Henne

Instance Methods

[hide private]

__getstate__(self)
Returns Simulation information for pickling using the pickle module.

source code

__init__(self, geo, start_timestamp=None, rel_speed=None, seed=1, allow_dup=False)
Initialize the MOSP Simulation.

source code

add_monitor(self, monitor_cls, tick=1, **kwargs)
Add a Monitor to Simulation to produce any kind of output.

source code

add_persons(self, pers_cls, n=1, monitor=None, args=None)
Add a Person to Simulation.

source code

del_person(self, person)
Remove a person from the simulation.

source code

get_person(self, id)
Find a person by its ID.

source code

readd_person(self, id, changes={})
Add a previously removed person to the simulation again. source code

run(self, until, real_time, monitor=True)
Runs Simulation after setup.

source code

Inherited from SimPy.SimulationRT.SimulationRT: rtnow, rtset, simulate

Inherited from SimPy.Simulation.Simulation: activate, allEventNotices, allEventTimes, has_events, initialize, now, peek, reactivate, startCollection, step, stopSimulation

Inherited from SimPy.Simulation.Simulation (private): _post, _terminate, _unpost, _waitUntilFunc

Inherited from object: __delattr__, __format__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __repr__, __setattr__, __sizeof__, __str__, __subclasshook__

Class Variables

[hide private]

Inherited from SimPy.Simulation.Simulation (private): _commandcodes, _commandwords, _dispatch

Instance Variables

[hide private]

geo
the geo-modell of the Simulation

messages
stores scheduled Calls of PersonGroups for execution as zombie's infect()

monitors
contains all Monitors of the Simulation

next_person_id
the next id that will be given to a new person

person_alarm_clock
central Process for waking up Persons on pause

persons
stores simulated Persons

random
central simulation-wide random generator

removed_persons
stores removed Persons for later use

Properties

[hide private]

Inherited from object: __class__

Method Details

[hide private]

init(self, geo, start_timestamp=None, rel_speed=None, seed=1, allow_dup=False)
(Constructor)

source code

Initialize the MOSP Simulation.

Parameters:

geo - geo model for simulation, a mosp.geo.osm.OSMModel extending the mops.collide.World
start_timestamp - time.time timestamp when simulation starts - used to calc DateTime of simlation out of simulation ticks.
rel_speed - (SimPy) ratio simulation time over wallclock time; example: rel_speed=200 executes 200 units of simulation time in about one second
seed - seed for simulation random generator
allow_dup - allow duplicates? only one or multiple Simulations can be startet at once

Overrides: object.__init__

add_monitor(self, monitor_cls, tick=1, **kwargs)

source code

Add a Monitor to Simulation to produce any kind of output.

Parameters:

monitor_cls - the monitor class from mops.monitors
tick - new monitor will observe every tick tick
kwargs - keyword parameters for monitor class instantiation

Returns:

reference to new, added monitor instance

add_persons(self, pers_cls, n=1, monitor=None, args=None)

source code

Add a Person to Simulation.

Parameters:

pers_cls - the person class (inherited from mosp.core.Person)
n - the number of new, added instances of pers_cls
monitor - (list of) monitor(s) the person(s) shall be observed by
args - dictionary of arguments for pers_cls instantiation

del_person(self, person)

source code

Remove a person from the simulation.

The person will be saved in self.removed_persons for later reference.

Parameters:

person - the person to be removed. The person must have been added and must be active.

To Do:

try using Process.cancel() from SimPy (is broken atm and may stay broken...try again with new go)
maybe remove person from monitors

get_person(self, id)

source code

Find a person by its ID.

Returns:: the person or None, if the ID was not found

readd_person(self, id, changes=`{}`)

source code

Add a previously removed person to the simulation again.

Parameters:

id (int) - id of the removed person
changes (dict with pairs of 'variable_name': value (variable_name in a string)) - changes to be made when reinserting the person

run(self, until, real_time, monitor=True)

source code

Runs Simulation after setup.

Parameters:

until - simulation runs until this tick
real_time - run in real-time? or as fast as possible
monitor - start defined monitors?
